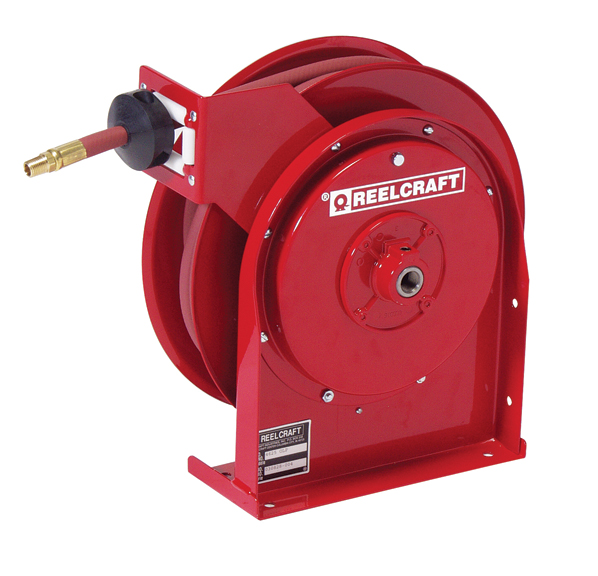

4425 OLP Low Pressure Air/Water Reel - Spring Driven 25 Ft Hose

Price: $174.00

Item Number: 4425 OLP

Manufacturer: Reelcraft

Manufacturer Part No: 4425 OLP

Quantity:

I.D		1/4 in 6 mm

Hose Length		25 ft 8 m

Pressure		300 psi 21 bar

Inlet (F) NPTF		3/8 in

Series		4000 (Open)

Hose Included		Yes

O.D.		0.500 in 13 mm

Outlet (M) NPTF		1/4 in

Weight		19 lbs 9 kg

Max. Temperature		150 °F 65 °C

A		12 7/8 in 327 mm

B		12 5/8 in 321 mm

C		8 in 203 mm

D		2 1/2 in 64 mm

E		5 3/8 in 136 mm

Applicable Accessories		600608 - 340° Pivot Base 600626 - Wall-Mounted Universal Swing Bracket 600993 - Wall-Mounted Universal Swing Bracket 600370 - Top channel & beam clamps for one reel 600295 - Top channel & beam clamps for two reels 1-HR1004-A - Adjustable Hose Bumpers S601024-2 - Inlet Hose Assembly 600230 - Adaptor Assembly
